10-Pin AUX-FM Aviation Adapter for BKR5000 and BKR9000 Series Radios

What is the 10-Pin Auxiliary Adapter?

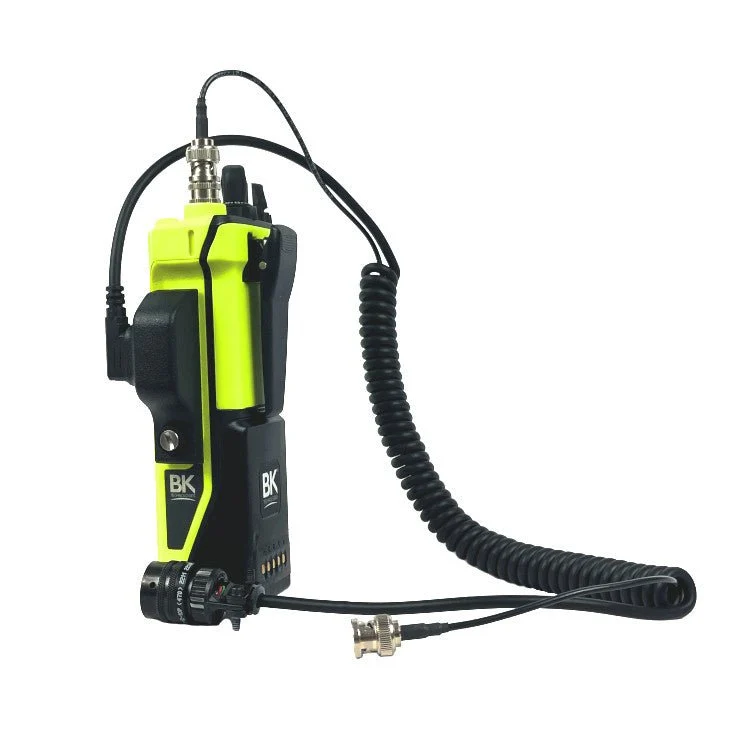

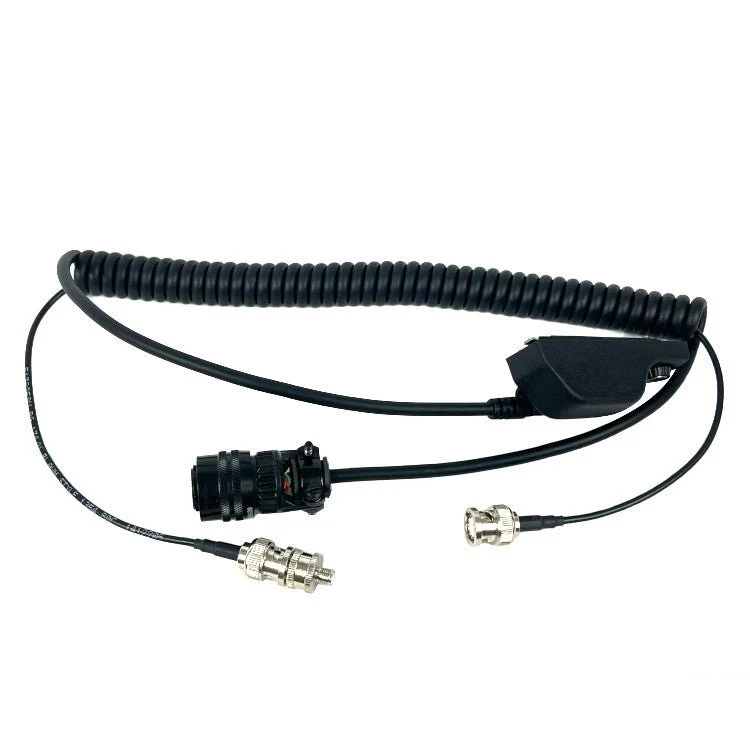

The AVBKRAU9R is a 10-pin MS3112E12-10P auxiliary adapter which connects a Bendix King KNG portable handheld radio to a MS3112E12-10S port on the flight panel of a helicopter.  The adapter allows the BK Radio BKR5000 or BKR9000 Handheld to integrate with the on board radio system on the helicopter.

Works with the following Bendix King Radios:

• BKR5000 and BKR90000 Series Radios

Why Choose the AVKNGAU9R?

The 10-pin AUX-FM adapter allows for simple interfacing of a BK BKR series portable radio with aircraft AUX-FM audio systems. No need to make a custom set up for a new radio when you can get a pre assembled and tested auxiliary adapter ready to plug and play.

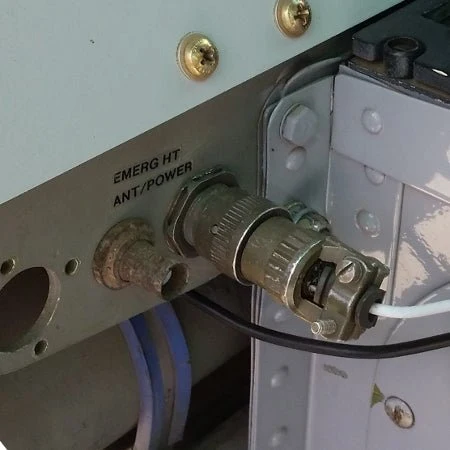

Note: The 10-pin AUX-FM (MS3112E12-10S) port is commonly found in US Forest Service aircraft.  Not all aircraft use a 10-pin MS3112E12-10P auxiliary plug.  Built using the USFS OAS A-17 configuration standard.

*Flight helmet headset adapters are also available, see AVBKRFH9R
